• Model NO.：EA-6FPN
• OEM&ODM：Available
• Load Capacity：160kg
• Packing：Wooden Case
• Feature：36V, Quick Speed, More Suitable for Evacuation
• Folded Size(L*W*H)：115*50*27cm
• Logo Printing：with Logo Printing
• 24V Motor Speed：Adjustable About 45 Steps Per Minute
• Seat Material：PVC, PVC with Foam, ABS Board
• Night Light：Available to Add
• Transport Package：Export Carton Package
• Specification：80~110*50*110~160cm
• Trademark：WANROOEMED
• Origin：Jiangsu, China (Mainland)
• HS Code：94029000
• Production Capacity：1000 Set,Sets , Month

Basic Info.

Model NO. EA-6FPN OEM&ODM Available Load Capacity 160kg Packing Wooden Case Feature 36V, Quick Speed, More Suitable for Evacuation Folded Size(L*W*H) 115*50*27cm Logo Printing with Logo Printing 24V Motor Speed Adjustable About 45 Steps Per Minute Seat Material PVC, PVC with Foam, ABS Board Night Light Available to Add Transport Package Export Carton Package Specification 80~110*50*110~160cm Trademark WANROOEMED Origin Jiangsu, China (Mainland) HS Code 94029000 Production Capacity 1000 Set/Sets / Month

Product Description

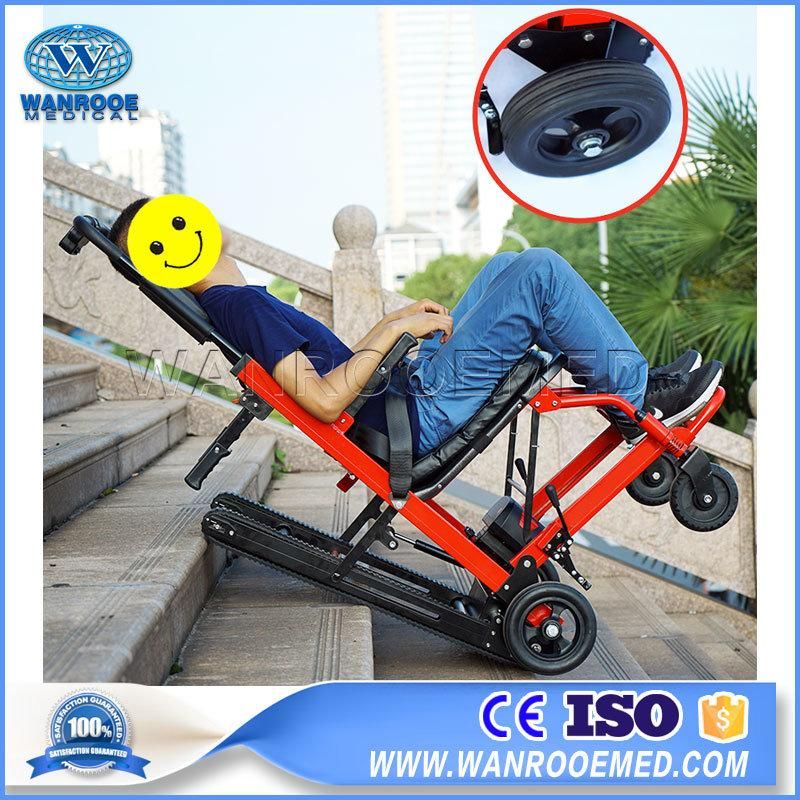

EA-6FPN Aluminum Alloy Emergency Rescue Foldable Evacuation Stair Chair

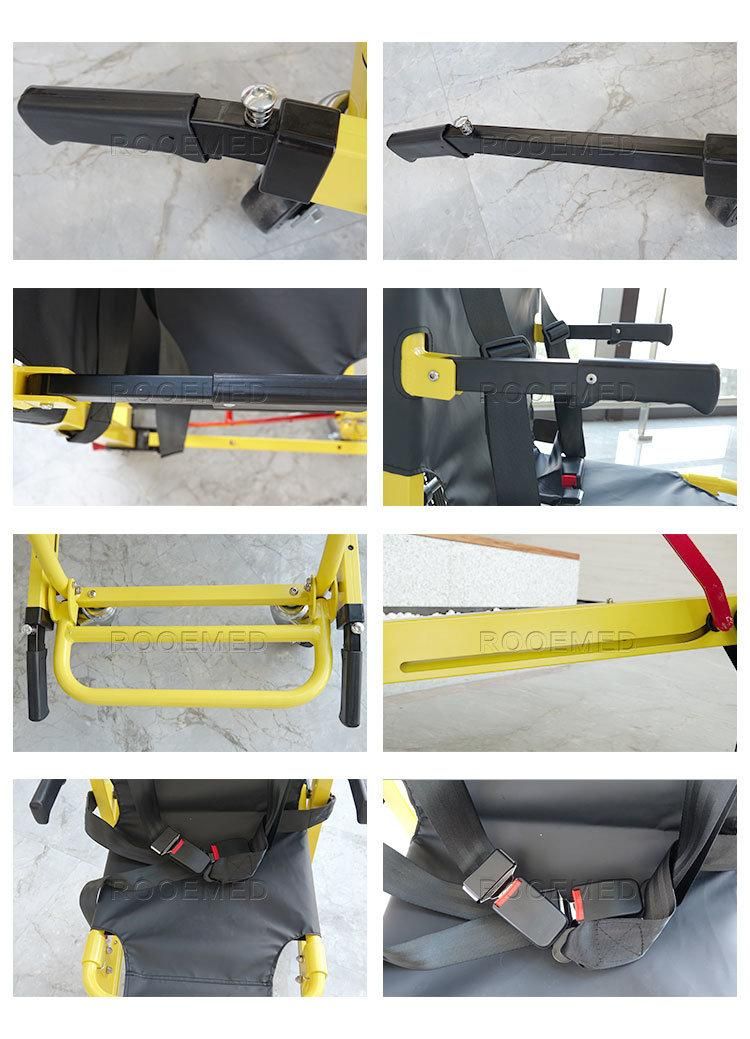

Specifications:1. Aluminum alloy material with electroplating painting process, foldable, compact structure, light weight.

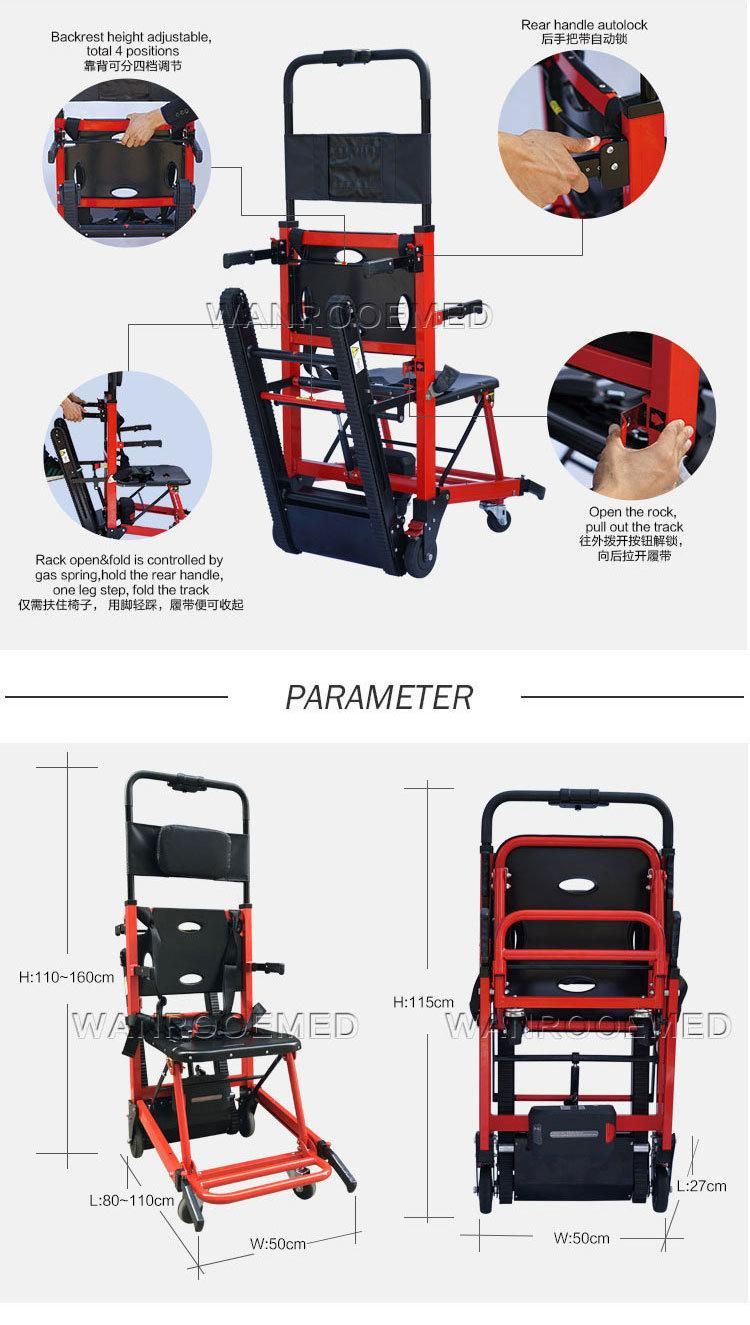

2. The backrest can be divided into 4 gears adjustment, 110~160cm, can adapt to various emergency situations.
3. The front handle can be folded at 90°, and the back handle has an automatic lock design, which saves space in folding and makes pushing more powerful.
4. There are two flexible lifting rods in front, which can be pulled apart and used as stretcher.
5. Removable Samsung aluminum battery, with anti-theft lock device, easy to charge, not stick to the human body.
6. It is suitable for family, hotel, school, nursing home and so on up and down stairs or emergency evacuation.

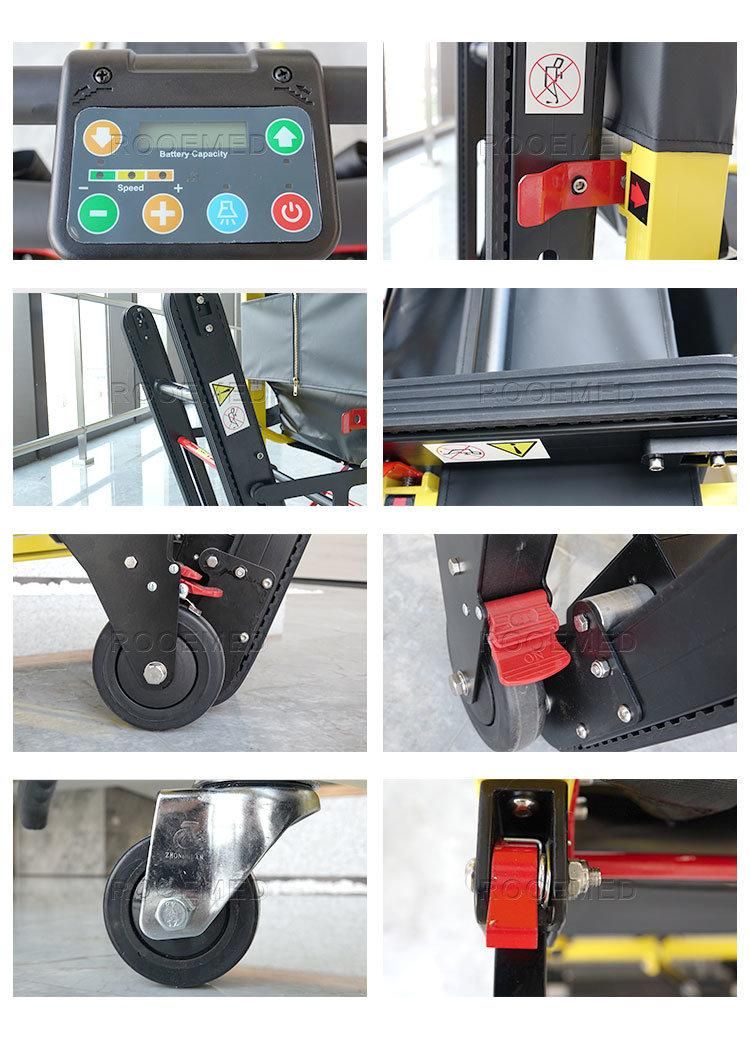

7. High wear-resistant track, no bumping up and down stairs. Pick latch, pull open. The track is controlled by an air spring and can be recovered by holding the ladder and treading lightly with your foot.8. LCD screen, three speed adjustment, with lighting function.9.24V, 200W motor with cover, soft start protection for power system, longer battery life, longer motor and battery life.
10. Folding design is easy to carry. Pull the red bar under the chair to fold the chair.
11. Can turn up the foot pedal, sitting comfortably.
PVC leather cushion, comfortable and easy to clean
13. The seat is equipped with vest type and metal buckle belt to ensure safety during transportation.
14.4 high wear resistant rubber wheels, two front wheels 360° universal wheels, two rear wheels with two feet on the brake, wheelchair use on the ground.
15. The full length of 82cm track, can easily reach 3 steps together, very smooth.
16. Concealed waterproof circuit design, no power line exposed, no noise in operation, longer service life.

Optional:
Pillow, Dust Cover, Wall BRACKET, 36V300W Brushless motor.
Accessories:
vest belt, lithium battery, wrench set, spongy cushion

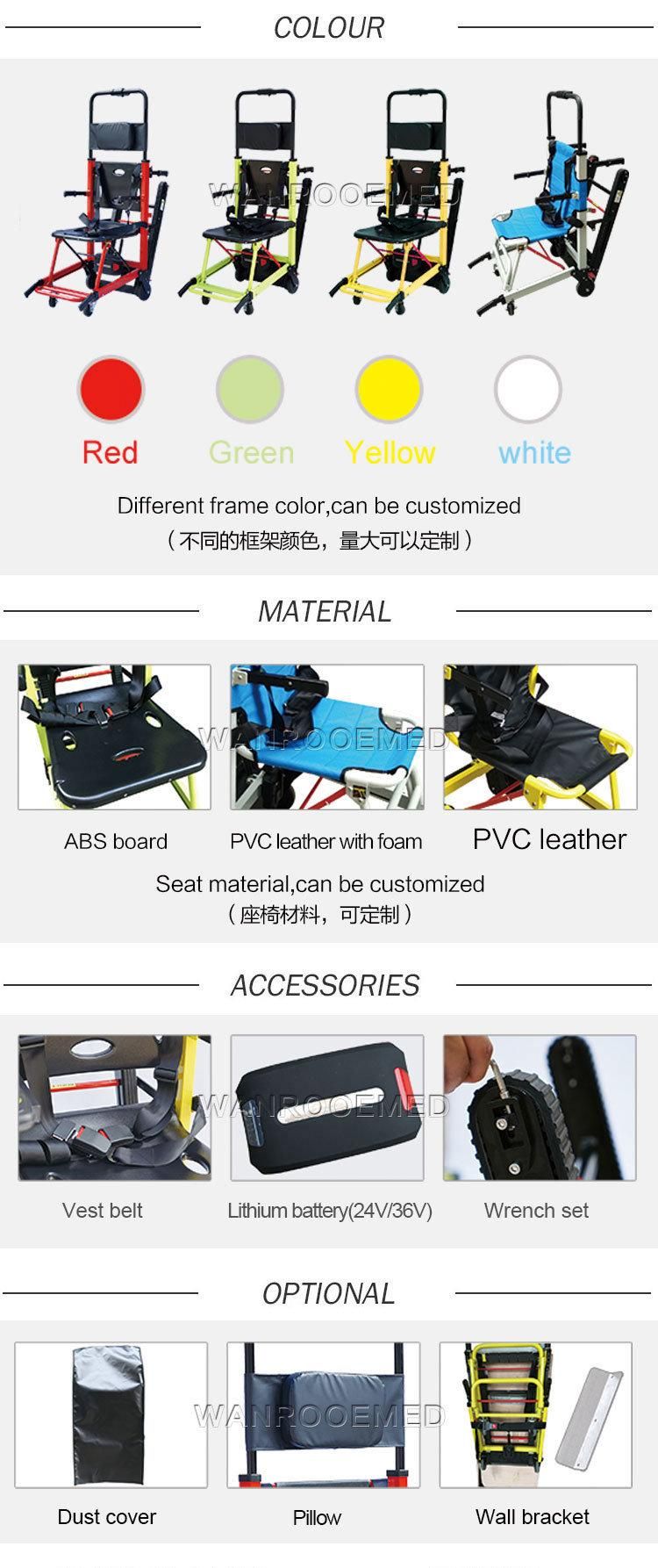

There are different frame colors and seat colors to suit different environment use.

MODEL	EA-6FPN
UN-FOLD SIZE(L*W*H)	110~160*50*80~100cm
FOLDED SIZE(L*W*H)	115*50*27cm
N.W	33kg
LOAD-BEARING	160kg
Using Time of Full Charge:	2 hours (up and down five layer building stairs 15 times)
Repeated Charging Times:	500 times
Battery Life	3~5 YEARS
Motor	24V,200W,High Quality, no noise
Track:	High wear-resistant materials, life time 3~5 years
Speed	About 45 steps per minute
