• Model NO.：NL113002
• Usage：Doctor Chair, Patient Chair, Operating Room
• Color：Green
• Customized：Customized
• Condition：New
• Power Source：Electricity
• Used：Medical Integral Dental Unit Chair
• Transport Package：1 PC,Carton
• Specification：150*110*130cm
• Trademark：NOVALION
• Origin：China
• Production Capacity：1000units Per Month

Basic Info.

Model NO. NL113002 Usage Doctor Chair, Patient Chair, Operating Room Color Green Customized Customized Condition New Power Source Electricity Used Medical Integral Dental Unit Chair Transport Package 1 PC/Carton Specification 150*110*130cm Trademark NOVALION Origin China Production Capacity 1000units Per Month

Product Description

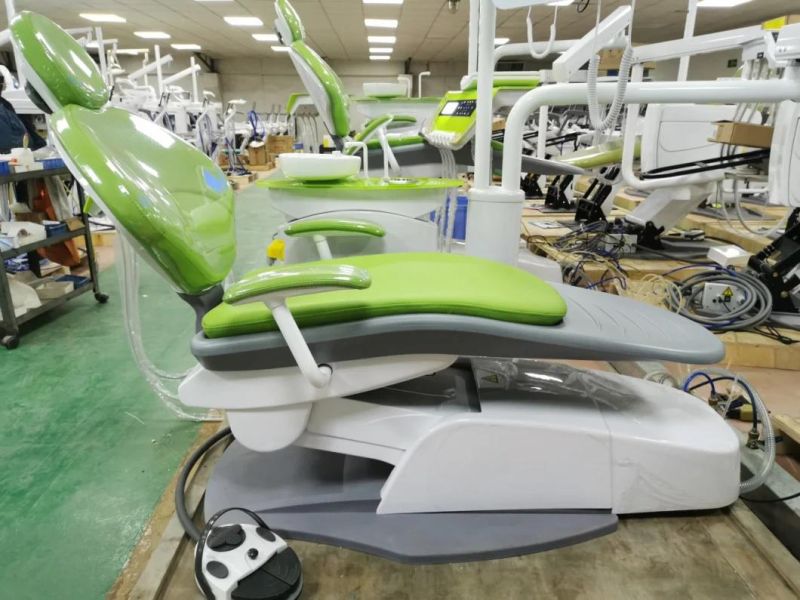

Name	Integral dental unit	Type	Dental Chair
Power Source	Electricity	Packaging	1 pc/carton
Load on instrument plate	≤8KG	Place of Origin	China
Size	150*110*130cm	Shelf Life	1year
Fuse specification	51F F6.3AH250V,5.2x20mm	N.W/G.W	260KG/280KG
Input power	680VA	Shipping	By sea truck or air
Material	Acrylic, metal, plastic, Steel, Plastic,Metal,Acrylic,Steel	MOQ	1PC
Certification	CE, ISO13485, ROHS	Production Capacity	1000Units per Month



Power supply	AC230V, frequency 50Hz
Input power	680VA
Weight	280KG Maximum carrying capacity 135KG
Fuse specification	grid power
Dental chair continuous loaded time	≤2min,OFF 18min, max duty cycle  FR1-20 φ5×20 5A
The maximum loading	1350N 20%
Maximum torque	100 N•m(user must not apply additional torsional load)
Tool tray additional load	≤8 Kg(measured in the width direction and farthest from the center of gravity of the product)
Working mode	intermittent operation for dental chair
Dental chair loading ratio	≤60%(dental chair working time/interval)(user)
Gargling water temperature	40±5°C
Water particle filter pore size	80μm,water pipe color  white
Air particle filter pore size	20μm,air pipe color  blue
Treating water back-siphoning quantity	≤40mm3 (0.04Ml)
Foot switch	IPX1
Maximum speed of high-speed hand-piece	≥300,000r/min
Maximum output torque	≥6g.cm (atmospheric pressure 0.22Mpa)
Maximum speed of low-speed hand-piece	≥20000r/min
Maximum output torque	≥10g.cm (atmospheric pressure 0.3Mpa)
Input air pressure	0.55~0.6MPa, Flow rate ≥50L/min
Input water pressure	0.2~0.4MPa, Flow rate ≥10L/min
Ambient temperature	5~40°C, Relative humidity ≤80%
Dental operation light illumination	48000LX-56000LX
The range of backrest	105°-170°
Cushion height from the ground is less than	460mm
Water hardness limit	less than 2.14 mmol/l(<12` dH)
pH limit	6.5-8.5

☆Standard Configurations:

High-speed handpiece tubing with connector  2 set

Low-speed handpiece tubing with connector   1 set

3-way syringe(cold and hot)   2 pieces

Strong and weak suction 1 set each

Adjustable headrest  1 set

Double armrest    1 set

Down mounted tool tray with sensor control   1 set

6-position for handpieces, syringe, scaler and electric micromotor

Water suction and saliva ejector    1 set each

LED operation lamp (white and yellow light color) with sensor  1 set

American style Lamp arm  1 set

24V built-in model X-ray film viewer  1 set

24V DC motors   1 set

Assistant control sytem with sensor control panel  1 set

Water purified system   1 set

24V Water heating system  1 set

Water bottle 1 pcs

Auto water supply and flush cuspidor system 1 set

Turnable ceramic cuspidor  1 set

Multi-function foot pedal    1 set

Dentist stool     1 piece

Micro fiber leather cushion 1 set

Solenoid valve   2 pcs

ABS plastic covers 1 set

Air and water tubes

All kinds of copper valves

With 9 memories

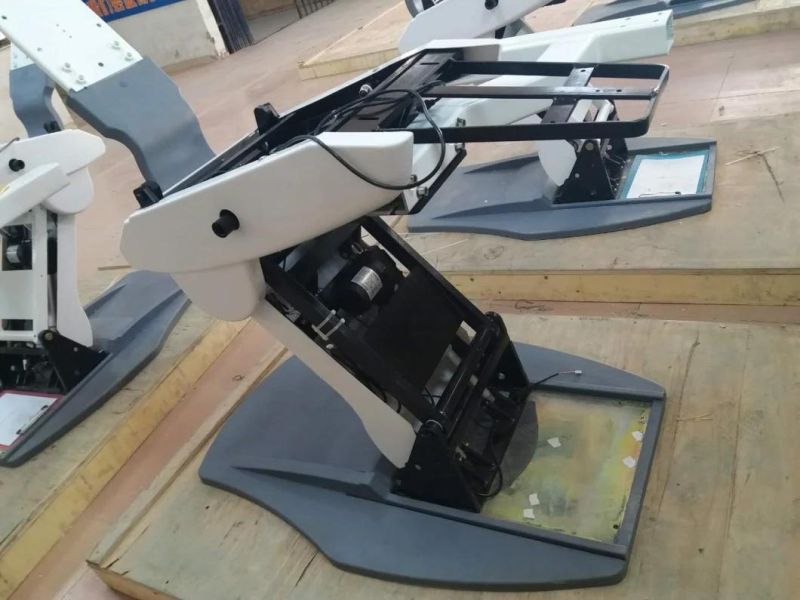

Chair frame with linked movement  1 set

New base(steel paste with strong PU cover)  1set

With safety system

Without options(handpieces, scaler,curing light,air compressor,Oral camera system )

☆Options:
1.available color:  PU Cushion: 10 colors    Micro-Fiber Cushion:  10 colors
2.options: scaler,curing light,handpiece,oral cameral system,air compressor.

☆Product features:
1.Adopt DC24V low voltage power supply system;
2. Simple and easy to clean design for dental chair equipment;
3. All dental machines are made by imported PU material, tasteless, easy to clean and durable;
4. The instrument tray is equipped with a sterilized silicone rubber pad to prevent cross infection of the instrument;
5. The dental chair use special track design, the original imported motor makes the chair no shaking;

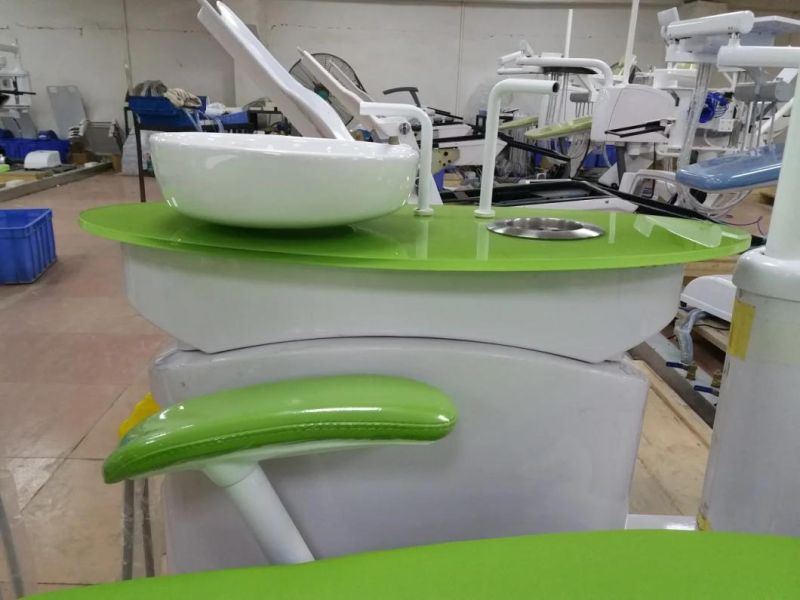

6. The ceramic spittoon basin can rotate 90 ° and has the function of quantitative water adding and washing;
7. The head frame is flexible and adjustable;
8. Automatic water supply loop control system makes timing,ration and automatic supply water,cupping,                                  gargle, constant temperature;                                                                                                                                                                9. Has the function that the nurse clean the instrument directly in the assistant position,Real four hand operation function;
10. Dental chair and doctor chair are available in various colors for customers to choose;
11. The whole machine adopts water gas inlet pipe line, which is corrosion-resistant;
12. The patient's seat back and cushion are molded by overall pressing, which is more solid and durable;
13. Dental chair can be controlled by hand or foot;
14. Special Reverse tube system to ensure that there is no possibility of back absorption,even if the non return mobile phone is      used, there is no need to worry about cross infection;

☆Storage:
This product should be stored in non-corrosive gas, dry, avoid the sun, good ventilation,                                                              clean In the environment, away from open fires

☆Packing: 1pc/carton

☆Shelf Life: 1year

☆Certificate:CE ISO9001 ISO13485
